Auto Inspection Machine


Harmonization of cutting edge technology and design!
New conceptual vision inspection



Tablet&Capsule auto inspection machine is the highly sophisticated equipment that automatically detects external defects both on Tablets&Capsules. The sleek design of this highly efficient machine enables easy&precise inspection per various shapes, colors, size of products only with simple setting and minimized structure change.
It delivers same inspection quality as that respective detection of tablets and capsules defects through the system setting and applying the best algorithm as well without structural change or complicated settings.



Inspection Function Applicable
Type
– Tablet : Uncoated, Film-coated, Sugar-coated, etc
– Capsule : Hard capsule, etc
Applicable
Size
ELMA 100 Length : 5~21mm
Width(dia) : 5-12mm
Height : 2~8mm
SELMA 100
SELMA 200 Length : 4~23mm
Width(dia) : 4-16mm
Height : 2~8mm
Inspection
Item
– Tablet : Spot, Scratch, Crack, Chip, Foreign particle, Miss print, Poor mark, Different color, Dirt, Depth error, Bad coating, etc
– Capsule : Spot on body, Joint defect, Hole on cap, Empty capsule, Dent, Missing letter, Spot on corner, etc
Inspection accuracy Able to inspect 40μm size defect
Machinary Part Camera T-type 2D : 8 Nos. & 3D : 2 Nos.
C-type 2D : 11 Nos.
H-type 2D : 13 Nos. & 3D : 2 Nos.
Electric
Power
220V/400V ± 10%, 50/60 Hz
Compressed air(dry)  5~8 bar
Environment Material SUS304, SUS316, UPE
Pneumatic pressure  ≥0.35MPa
Temperature
Humidity
 10~30°C / 30~70%

Top/Bottom

Double inspection by 3D camera(2 Nos.) & 2D color camera(2 Nos.)



Side

No bland spot inspection by 2D color camera(6 Nos.)



3D camera Inspection

2D image is hard to check the depth-defect such as engraving error, poor coating on surface.
3D image can accurately check the depth-defect by laser scanning.



Cylinder

Make one combined image from 2D color camera(6 Nos.) by special algorithm.



Corner

No bland spot inspection by 2D color camera(4 Nos.).



Powder Volume

IR camera(1 No.) scans through inside of capsule,
calculates the powder volume percent(%)
(Able to inspect the black color capsule)



Corner spot

Spot 3 layer tablet

Chipped edge coating

Dark line

Missing letter

Chipped top coating

Spot in engraving

Chipped edge

Broken top surface

Chipped engraving

Broken

Broken edge

Broken

Stained in engraving

Chipped top coating

Spot on side

Stained

Abnormal shape

Capping

Spot on split line

Bump

Crack on side

Stained engraving

Chipped in engraving



Spot on body

Joint defect

Hole on cap

Empty capsule

Dent

Dent

Missing letter

Spot on cap

Spot on body

Hole on body

Hole on body

Dent

Missing letter

Joint defect

Spot on corner


Item Contents
Surface Spot, Stain, Broken, Chipped, Discolor, Float coating, etc
Printing Missing letters, Blurred letters, Scratches, Non printing
Engraving Sticking, Different kinds of engraving, Double engraving, etc
2D Camera Over 40㎛ spot and stain
3D Camera Over 40㎛ depth difference,
Over 60㎛ surface defects


Item Contents
Inspection item Surface stain, Defective color, Discolor, Color difference, Spot, A small piece spot, Printing stain, Printing spread, Printing letter error, Dent, Tear, Empty capsule, etc
2D Camera Over 50㎛ spot & stain

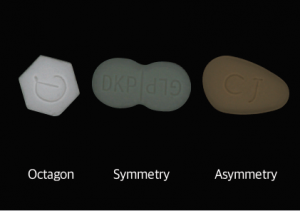

Step 1 : Set a standard image with tablet/capsule features such as shape, print, engraving, color, etc
Step 2 : Match the standard image with real tablet/capsule image to pick out defects

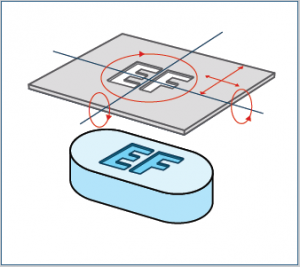

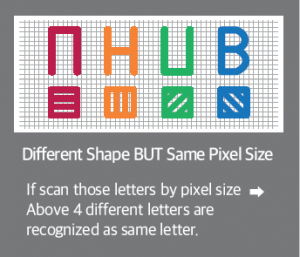

Recognize the engraving as “Shape” not pixel size.







Able to adjust the inspect standard(defect size/location/brightness etc) by defect type(spot/crack/discolor etc)

1. Original Image

2. Set Defect Area

3. Set Inspection Area



  • 원터치 탈착구조
  • 분해시 공구 불필요
  • 손이 닿기 힘든 틈새 제거
  • 모든 클리닝 파트가 물세척 가능
  • 클리닝 파트 구조의 단순
  • 광학부는 밀폐형 구조로 설계되어 분리 불필요
  • 분해 3분/ 조립 5분
  • 실시간 분진 제거



New Tablet / Capsule Setup : 30 mins

Registered Tablet / Capsule Setup : 5 mins



Open structure prevents the jam during sorting.
